Sealer
NEW

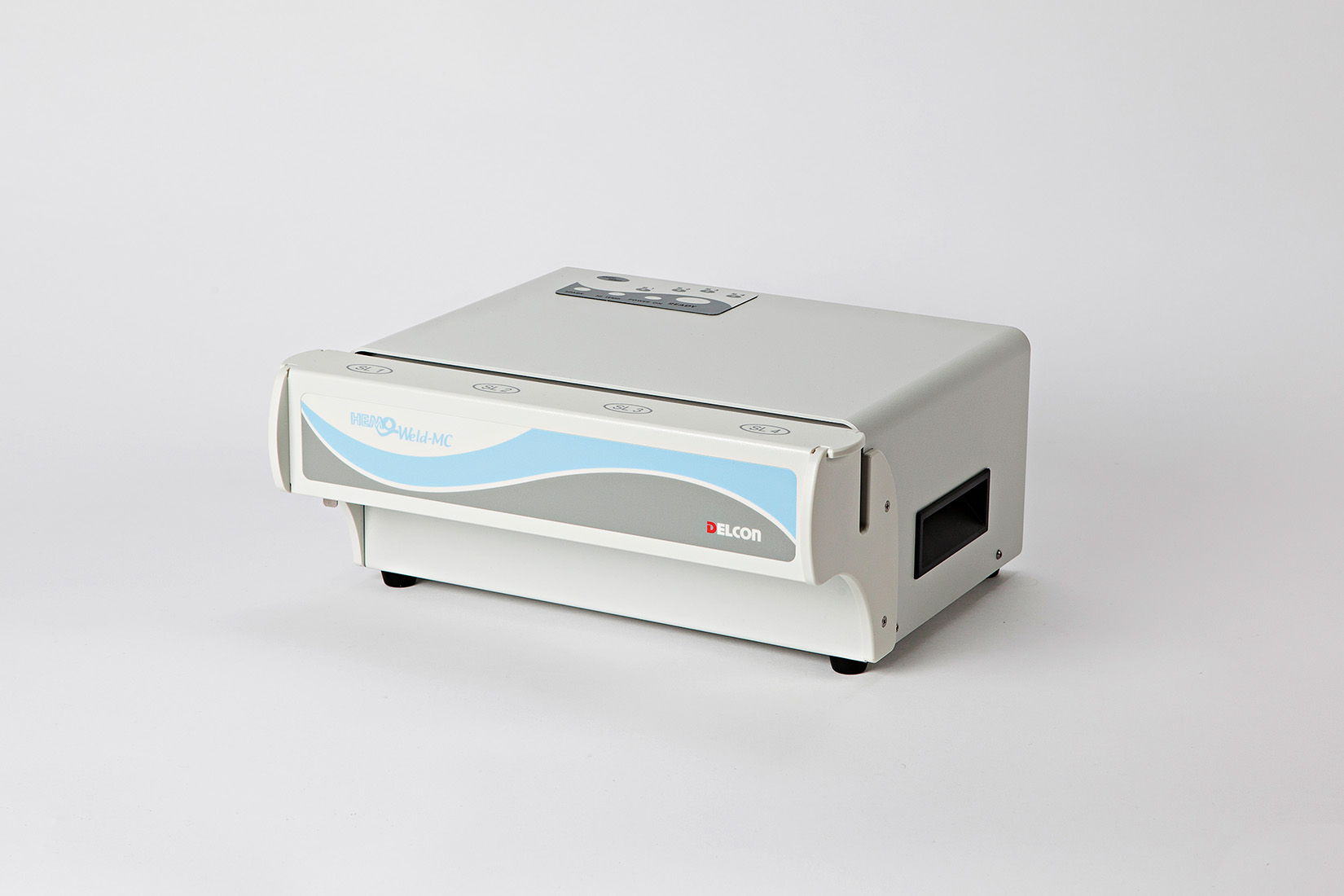

HemoWeld MC
HemoWeld-MC is designed to rapidly prepare up to four segments of plastic tubing.
Main features
Four clamps that can be programmed
The HemoWeld-MC is an automatic bench sealer with 4 clamps for sealing medical grade PVC tubing designed for medium-to-heavy duty job.
The operator can choose to use all four clamps or only some at his choice by a programming key.
Other features
- Safety anti-spark protection system.
- Overheat protection system.
- LED and sound alerts.
- Separate handgun available (accessory) to improve working flexibility.
- Ergonomic design
- Transparent splash guard that protects the operator from any leakage.
- Tube guide for correct position ensuring precise and accurate sealings
Tech spec
- Dimensions: 320D x 290W x140H mm (12,6D x 11,4W x 5,5H inch)
- Weight: 8 kg (17,6 lbs)
- Power voltage: 115 / 230 V~
- Line frequency: 50-60Hz
- Working freq.: 40.680 MHz
- Power consumption: 420VA max
- Sealing time: 0,8” ÷ 3” (usually 1,2’’) depending on tubing outer diameter, thickness and hardness
- RF output: 80W
- Working freq.: 40.680 MHz
- Types of tube: standard PVC tubing medical grade upto 6,0 mm O.D.
- Applied part: no applied part
- Classification - MDD 93/42: Class1 Medical Device
- Class of protection: 1 (According to IEC 60601-1)
- NOT available for US Market
Information on this page is not intended to serve or replace the datasheet of the product. Contact us to request it.
